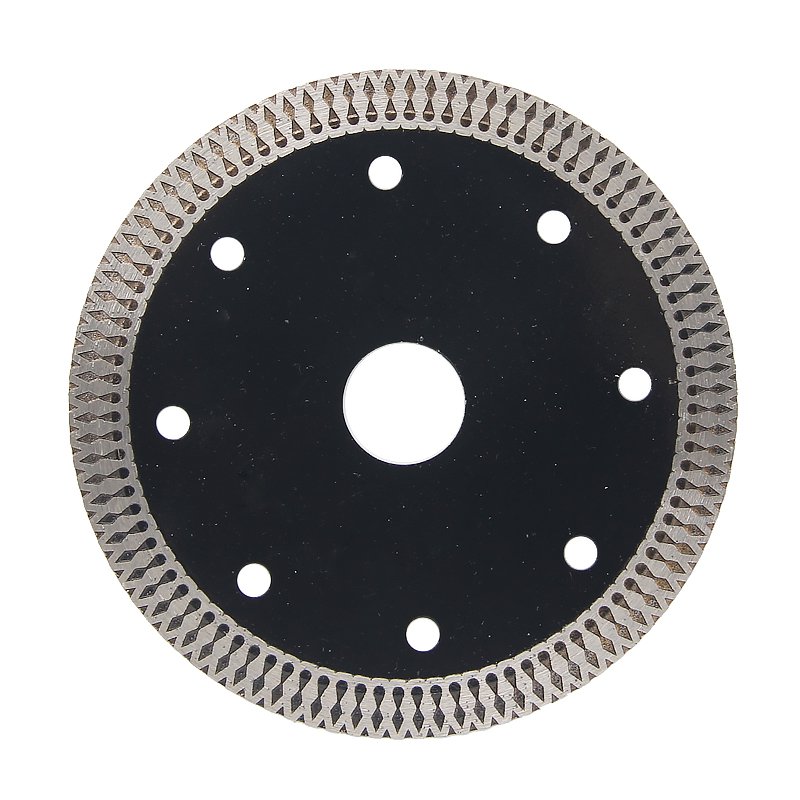

110mm Black Mesh Rim Ceramic Cutting Blade
This is the black mesh-rim 110mm ceramic reference. It lists a 20mm bore and 1.2mm thickness. Reference 3143 has the same principal dimensions and a similar design name, so use the catalogue reference and approved sample to keep the order unambiguous.

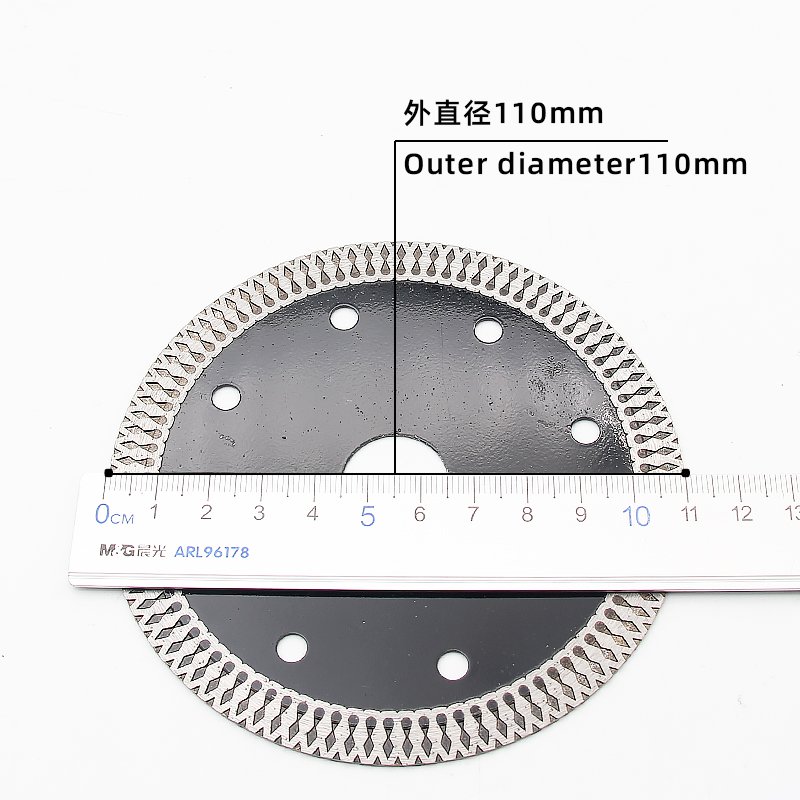

- Diameter: 110mm

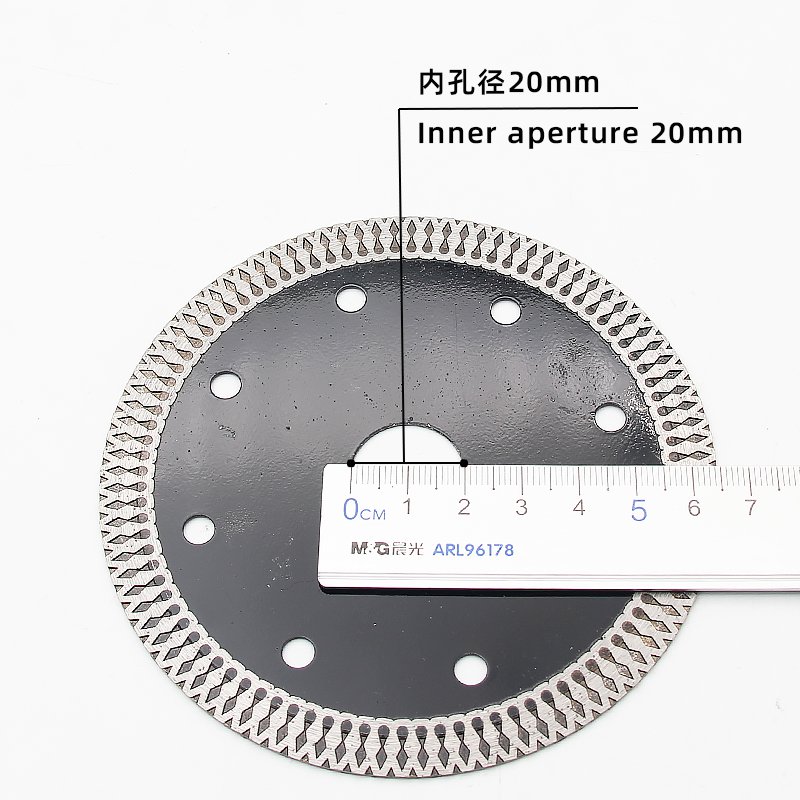

- Bore: 20mm

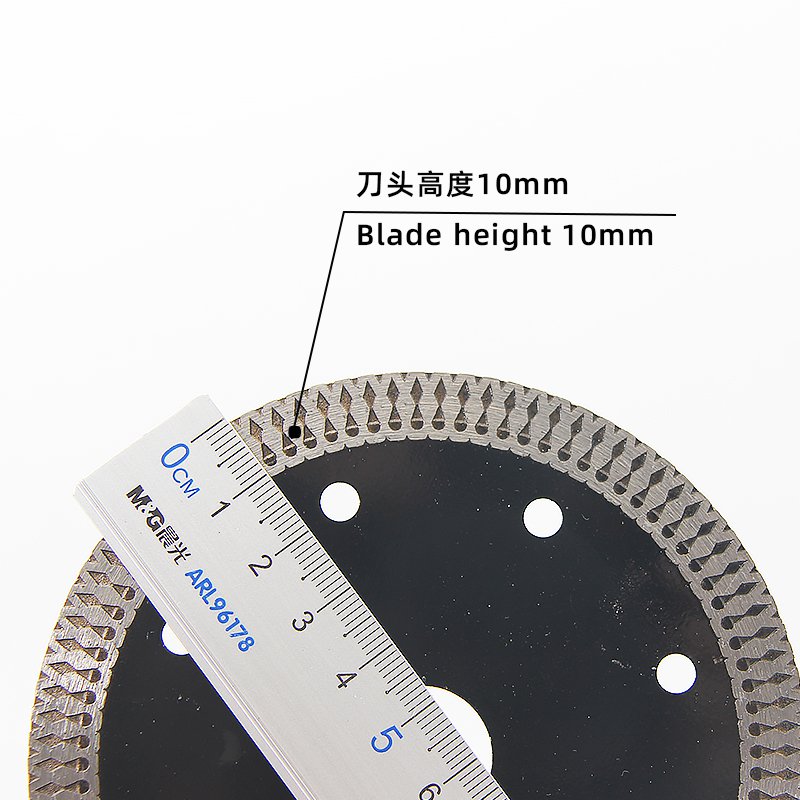

- Segment height: 10mm

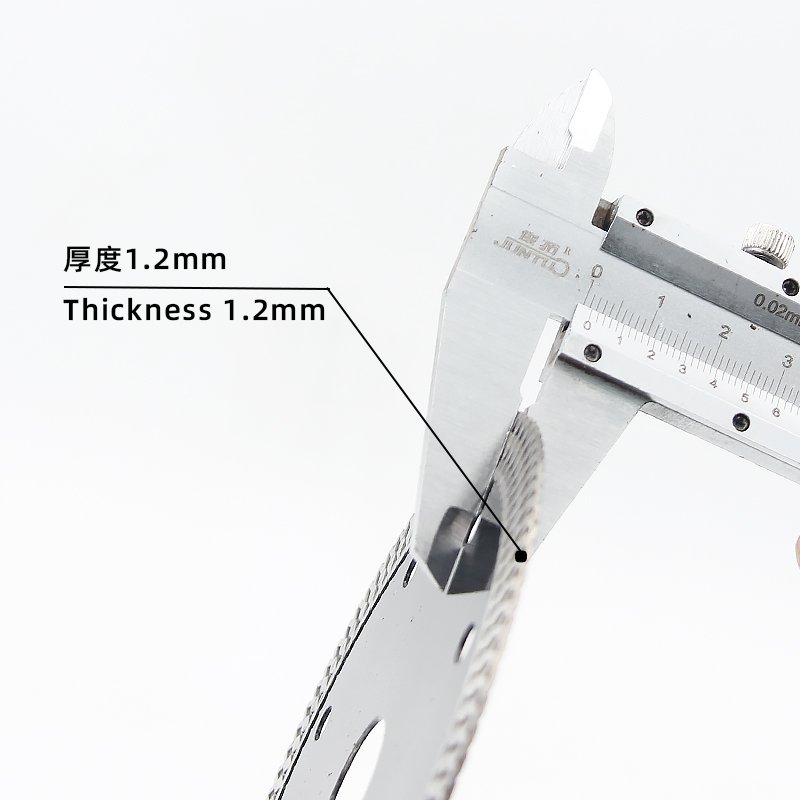

- Thickness: 1.2mm
- Place of origin: China, Shandong, Linyi
- Applications: ceramics, tiles, rock slabs, microcrystalline stone cutting.
Product Details
Content updated:
This is the black mesh-rim 110mm ceramic reference. It lists a 20mm bore and 1.2mm thickness. Reference 3143 has the same principal dimensions and a similar design name, so use the catalogue reference and approved sample to keep the order unambiguous.
Catalogue reference: #2679
Dimensions and listed application
| Specification | Catalogue information |
|---|---|
| Diameter | 110mm |
| Bore | 20mm |
| Segment height | 10mm |
| Thickness | 1.2mm |
| Place of origin | China, Shandong, Linyi |
| Applications | ceramics, tiles, rock slabs, microcrystalline stone cutting. |
Compare nearby catalogue sizes
| Reference | Diameter | Bore | Segment | Thickness |
|---|---|---|---|---|
| #2679 | 110mm | 20mm | 10mm | 1.2mm |
| #3147 | 110mm | 20mm | 10mm | 1.2mm |
| #2740 | 110mm | 20mm | 10mm | 1.2mm |
Other references in this comparison: 110mm Reinforced Flange Ceramic Tile Blade · 110mm Blue Corrugated Ceramic Tile Blade. Matching dimensions do not establish the same bond, rim or permitted use.
Ask about this model
Send reference #2679, your material, machine and required quantity. For a repeat order, include the approved sample or drawing reference. Marking and packaging changes can be discussed separately.
Open the enquiry worksheet · Record a sample trial · Contact Zhanyue Tools
Before use
Check the supplied blade marking and the machine instructions for fit, speed, cooling and permitted operation. The catalogue dimensions are not operating instructions. See our selection guide for the information to check before ordering.
