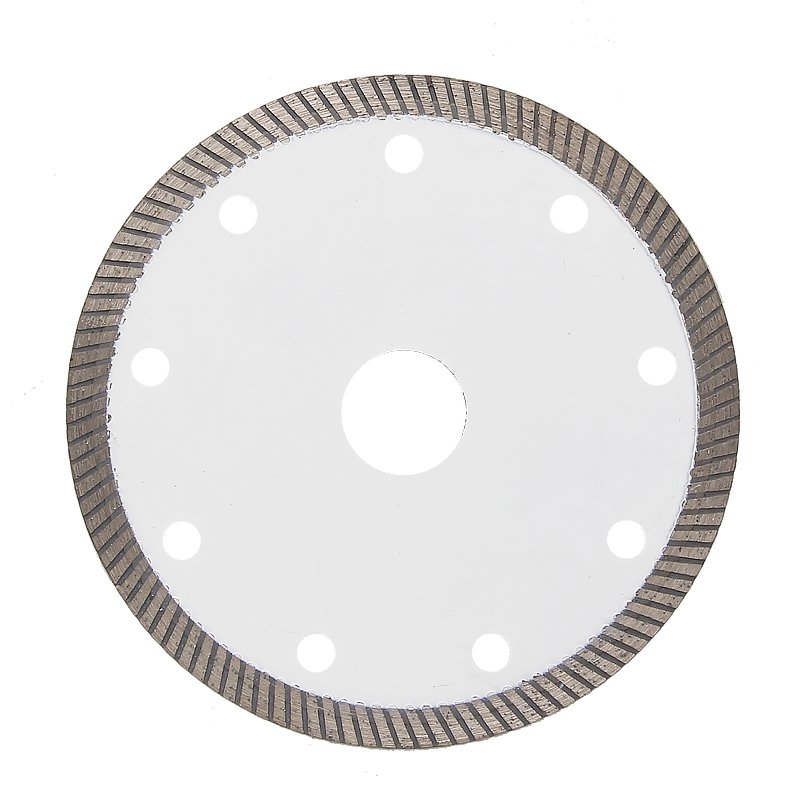

110mm Small Corrugated Tile Blade – 7mm Segment
The 7mm segment height is the key listed dimension on this 110mm small-corrugated tile reference. Bore and thickness are 20mm and 1.2mm. Compare it with the 10mm-segment alternatives using the full specification rather than diameter alone.

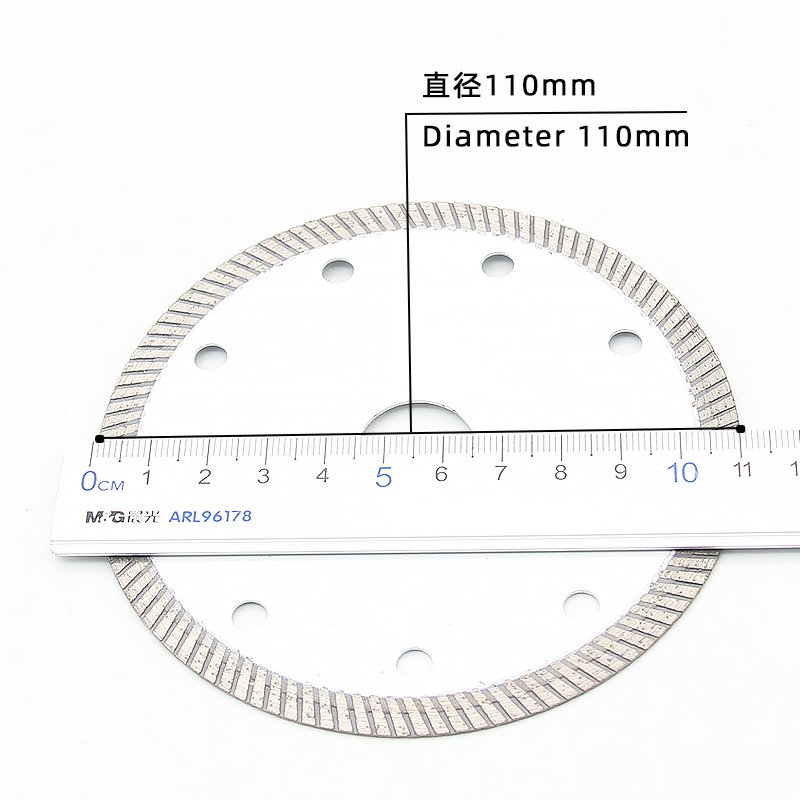

- Diameter: 110mm

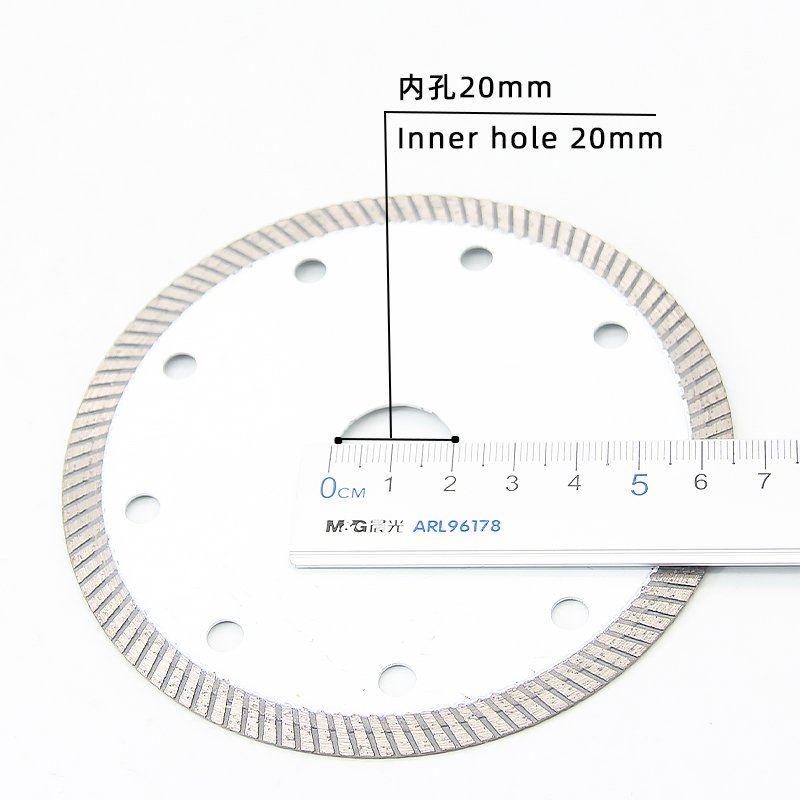

- Bore: 20mm

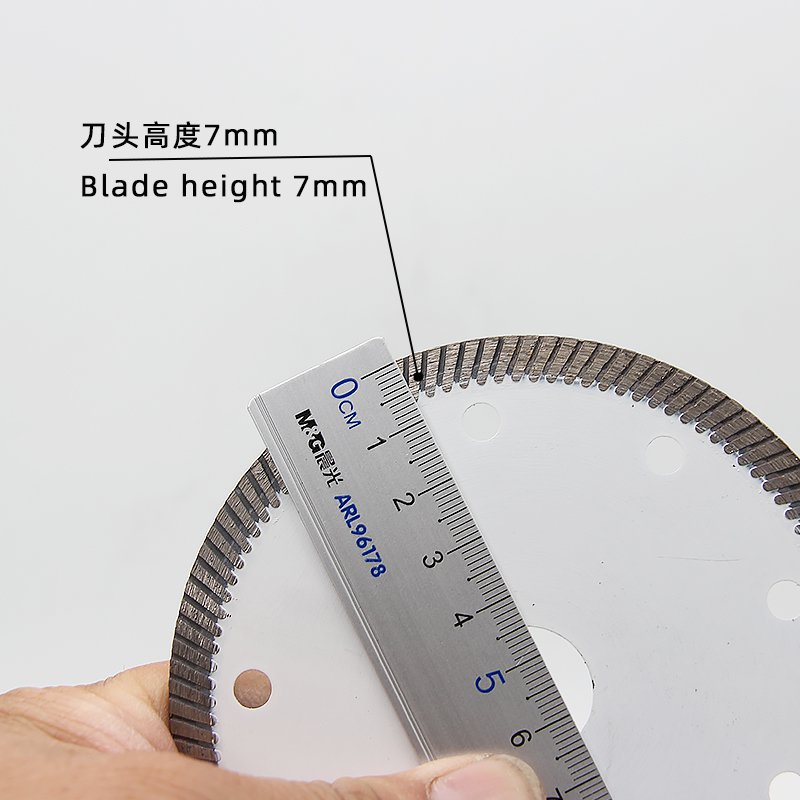

- Segment height: 7mm

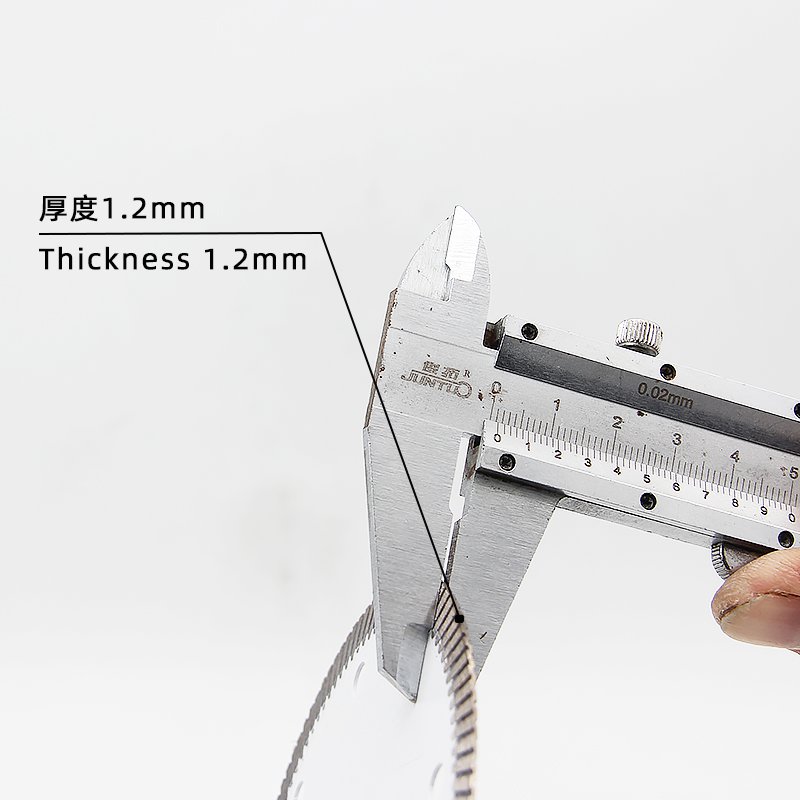

- Thickness: 1.2mm
- Place of origin: China, Shandong, Linyi
- Applications: ceramics, tiles, rock slabs, microcrystalline stone cutting.
Product Details
Content updated:
The 7mm segment height is the key listed dimension on this 110mm small-corrugated tile reference. Bore and thickness are 20mm and 1.2mm. Compare it with the 10mm-segment alternatives using the full specification rather than diameter alone.
Catalogue reference: #2711
Dimensions and listed application
| Specification | Catalogue information |
|---|---|
| Diameter | 110mm |
| Bore | 20mm |
| Segment height | 7mm |
| Thickness | 1.2mm |
| Place of origin | China, Shandong, Linyi |
| Applications | ceramics, tiles, rock slabs, microcrystalline stone cutting. |
Compare nearby catalogue sizes
| Reference | Diameter | Bore | Segment | Thickness |
|---|---|---|---|---|
| #2711 | 110mm | 20mm | 7mm | 1.2mm |
| #2720 | 110mm | 20mm | 7mm | 1.2mm |
| #2740 | 110mm | 20mm | 10mm | 1.2mm |
Other references in this comparison: 110mm Yellow Small Corrugated Tile Blade · 110mm Blue Corrugated Ceramic Tile Blade. Matching dimensions do not establish the same bond, rim or permitted use.
Ask about this model
Send reference #2711, your material, machine and required quantity. For a repeat order, include the approved sample or drawing reference. Marking and packaging changes can be discussed separately.
Open the enquiry worksheet · Record a sample trial · Contact Zhanyue Tools
Before use
Check the supplied blade marking and the machine instructions for fit, speed, cooling and permitted operation. The catalogue dimensions are not operating instructions. See our selection guide for the information to check before ordering.
