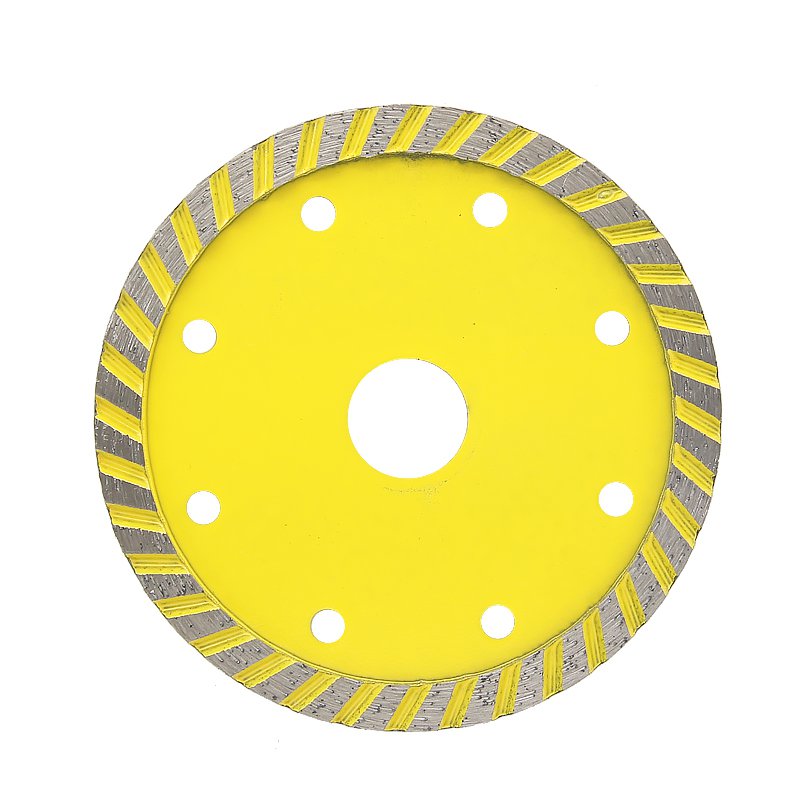

110mm Diamond Cutting & Grinding Blade – 5mm Thickness
This 110mm model is listed for cutting and grinding and has a 5mm thickness. Confirm the permitted working faces and compatible guard for the supplied version. Its operation description should not be transferred to a thinner cutting-only disc.
- Diameter: 110mm

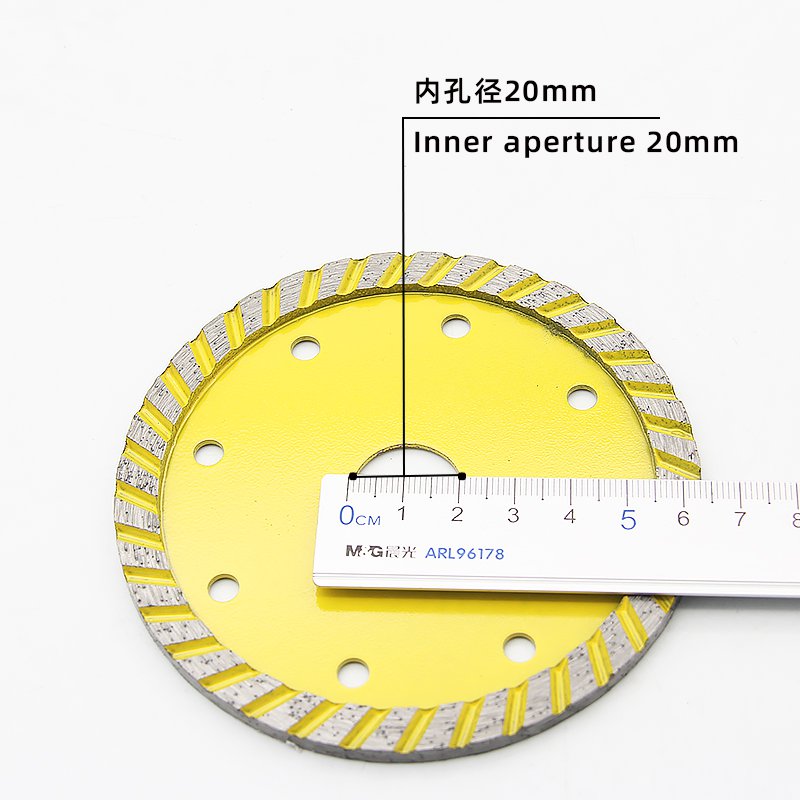

- Bore: 20mm
- Segment height: 10mm

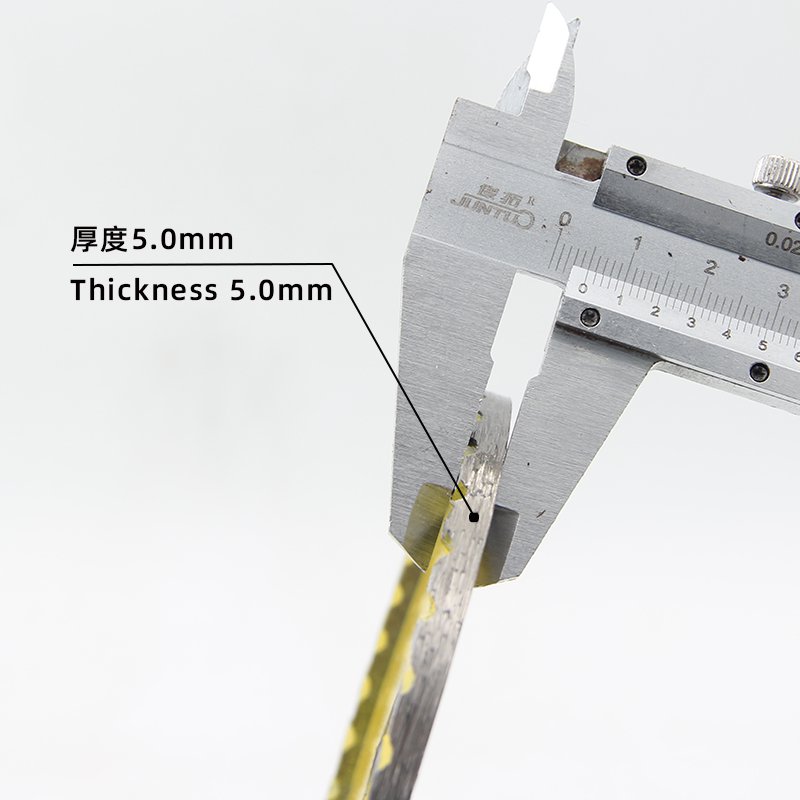

- Thickness: 5mm
- Place of origin: China, Shandong, Linyi
- Applications: granite, marble, cutting and grinding
Product Details
Content updated:
This 110mm model is listed for cutting and grinding and has a 5mm thickness. Confirm the permitted working faces and compatible guard for the supplied version. Its operation description should not be transferred to a thinner cutting-only disc.
Catalogue reference: #2078
Dimensions and listed application
| Specification | Catalogue information |
|---|---|
| Diameter | 110mm |
| Bore | 20mm |
| Segment height | 10mm |
| Thickness | 5mm |
| Place of origin | China, Shandong, Linyi |
| Applications | granite, marble, cutting and grinding |
Compare nearby catalogue sizes
| Reference | Diameter | Bore | Segment | Thickness |
|---|---|---|---|---|
| #2078 | 110mm | 20mm | 10mm | 5mm |
| #3147 | 110mm | 20mm | 10mm | 1.2mm |
| #2645 | 110mm | 20mm | 10mm | 1.8mm |
Other references in this comparison: 110mm Reinforced Flange Ceramic Tile Blade · 110mm Continuous Rim Wet & Dry Blade – Design 2645. Matching dimensions do not establish the same bond, rim or permitted use.
Ask about this model
Send reference #2078, your material, machine and required quantity. For a repeat order, include the approved sample or drawing reference. Marking and packaging changes can be discussed separately.
Open the enquiry worksheet · Record a sample trial · Contact Zhanyue Tools
Before use
Check the supplied blade marking and the machine instructions for fit, speed, cooling and permitted operation. The catalogue dimensions are not operating instructions. See our selection guide for the information to check before ordering.
