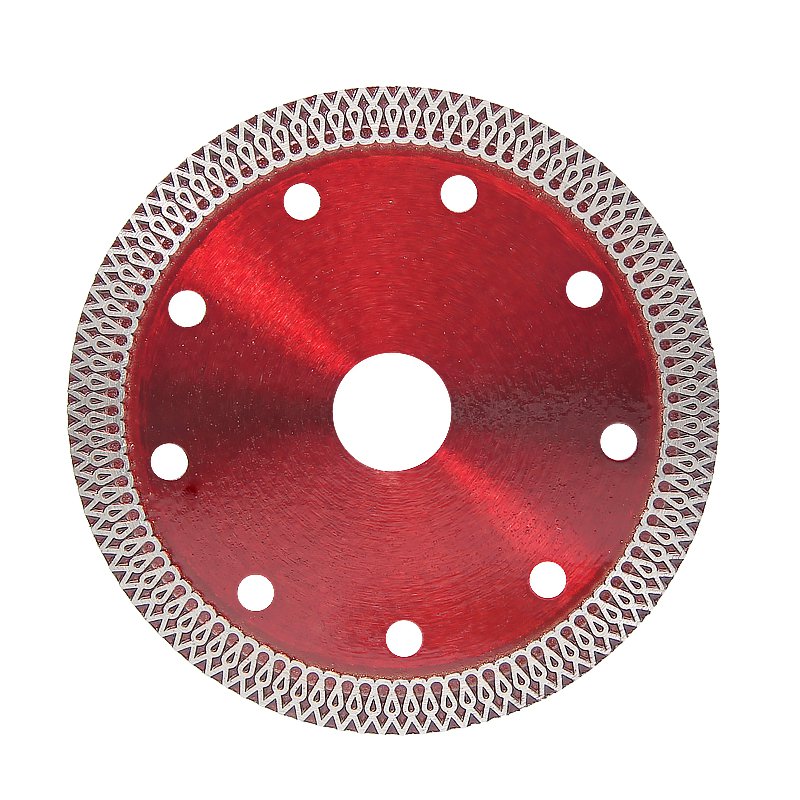

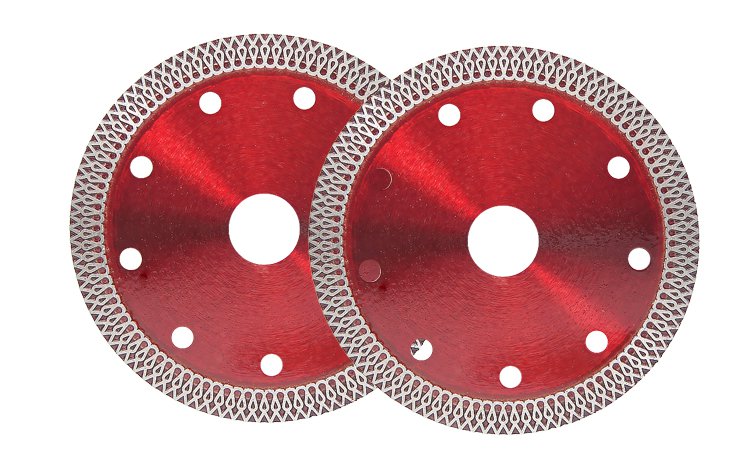

115mm Transparent Red Ceramic Tile Blade
The transparent-red finish belongs to this 115mm tile reference. Its listed bore is 22.23mm and thickness is 1.2mm. Other 115mm entries have the same dimensions but different flange or rim descriptions; include the reference when requesting a repeat sample.

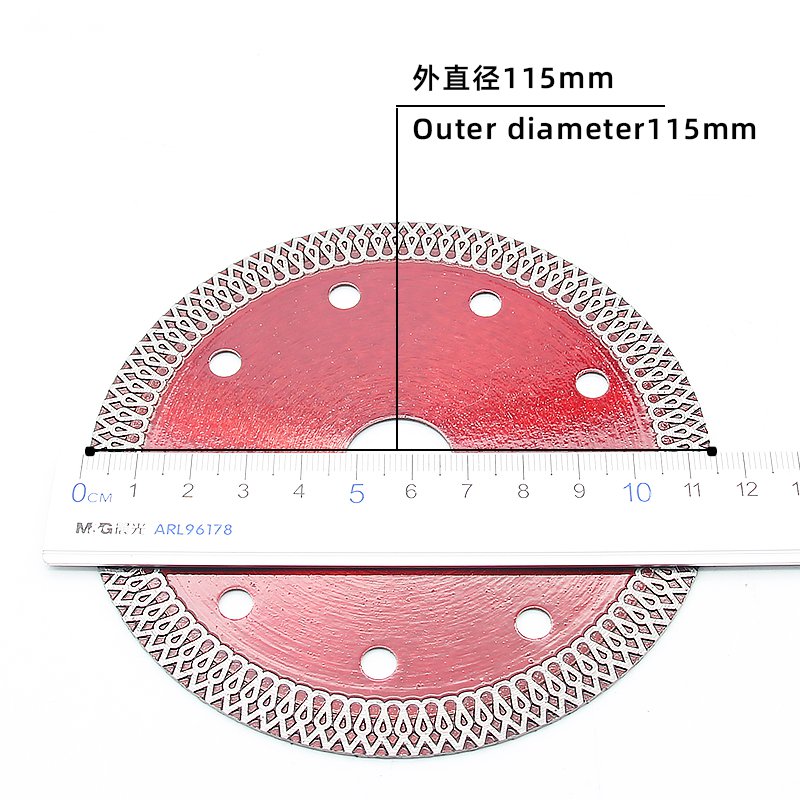

- Diameter: 115mm

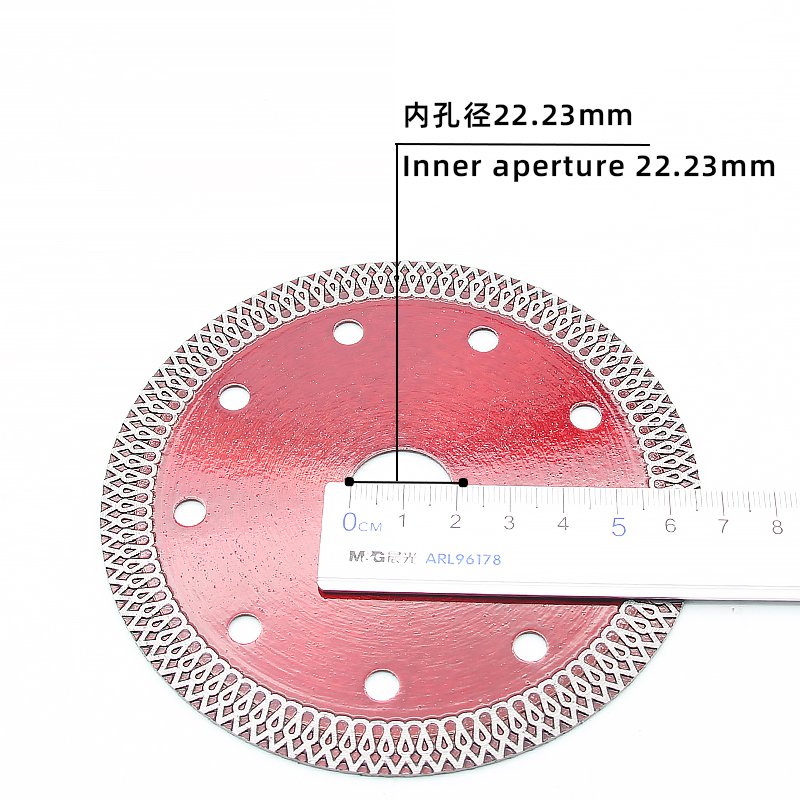

- Bore: 22.23mm

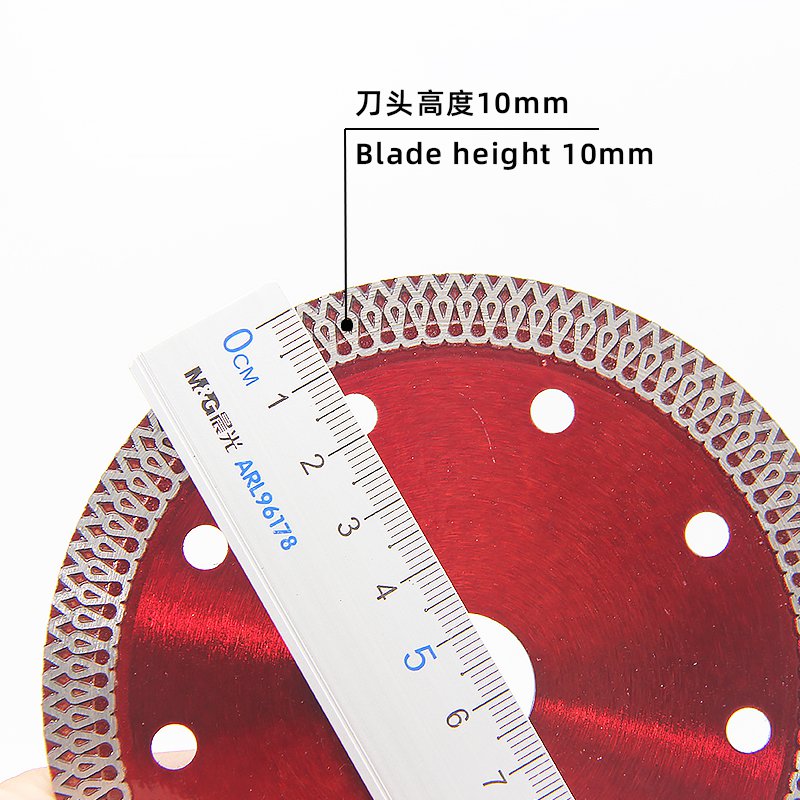

- Segment height: 10mm

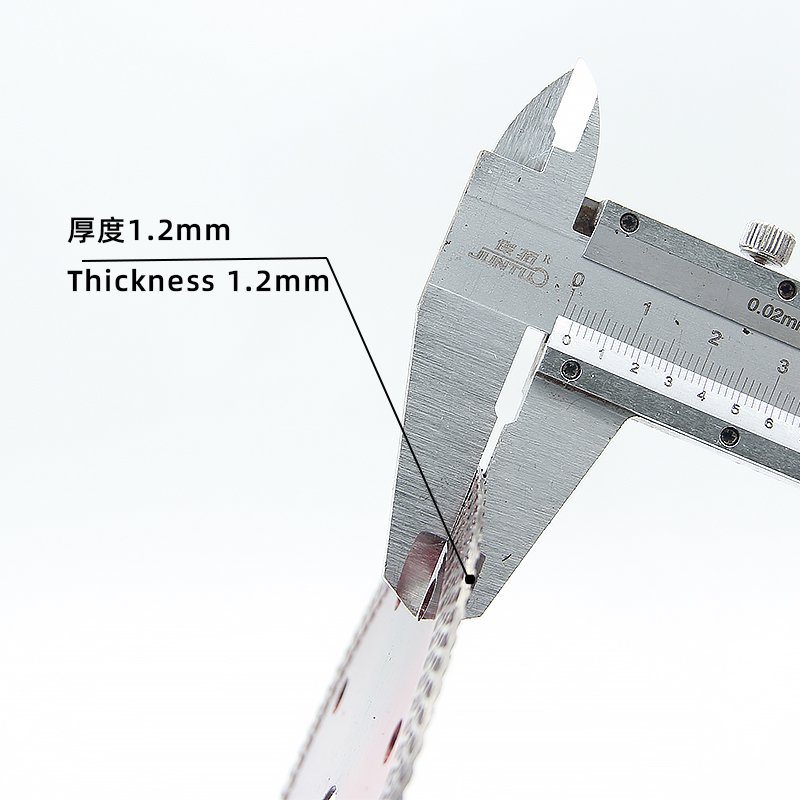

- Thickness: 1.2mm
- Place of origin: China, Shandong, Linyi
- Applications: ceramics, tiles, rock slabs, microcrystalline stone cutting.
Product Details
Content updated:
The transparent-red finish belongs to this 115mm tile reference. Its listed bore is 22.23mm and thickness is 1.2mm. Other 115mm entries have the same dimensions but different flange or rim descriptions; include the reference when requesting a repeat sample.
Catalogue reference: #2784
Dimensions and listed application
| Specification | Catalogue information |
|---|---|
| Diameter | 115mm |
| Bore | 22.23mm |
| Segment height | 10mm |
| Thickness | 1.2mm |
| Place of origin | China, Shandong, Linyi |
| Applications | ceramics, tiles, rock slabs, microcrystalline stone cutting. |
Compare nearby catalogue sizes
| Reference | Diameter | Bore | Segment | Thickness |
|---|---|---|---|---|
| #2784 | 115mm | 22.23mm | 10mm | 1.2mm |
| #2774 | 115mm | 22.23mm | 10mm | 1.2mm |
| #2800 | 115mm | 22.23mm | 10mm | 1.2mm |
Other references in this comparison: 115mm Reinforced Flange Ceramic Cutting Blade · 115mm Small Corrugated Reinforced Flange Tile Blade. Matching dimensions do not establish the same bond, rim or permitted use.
Ask about this model
Send reference #2784, your material, machine and required quantity. For a repeat order, include the approved sample or drawing reference. Marking and packaging changes can be discussed separately.
Open the enquiry worksheet · Record a sample trial · Contact Zhanyue Tools
Before use
Check the supplied blade marking and the machine instructions for fit, speed, cooling and permitted operation. The catalogue dimensions are not operating instructions. See our selection guide for the information to check before ordering.
