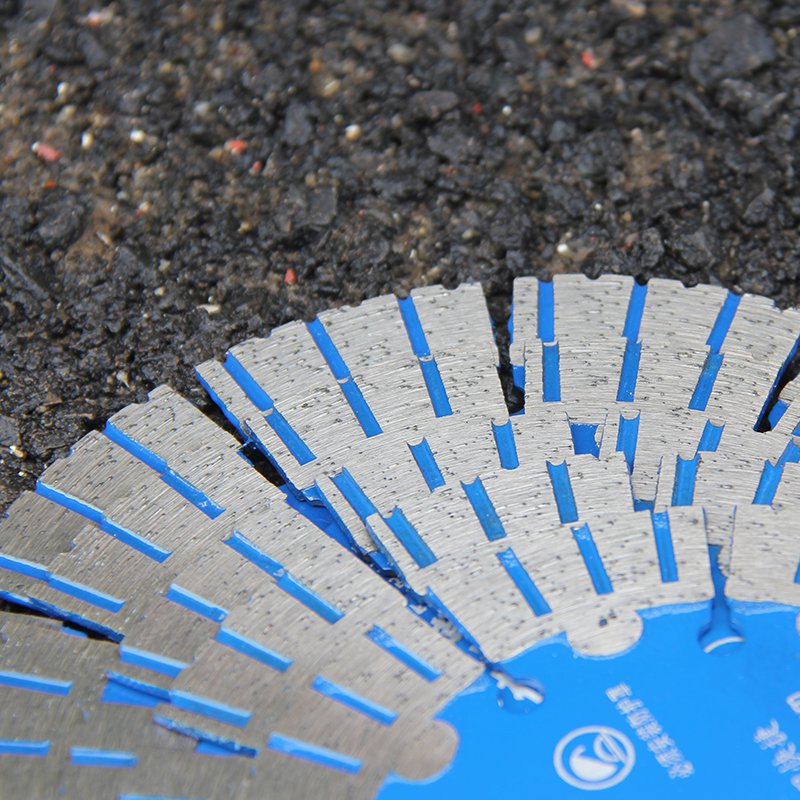

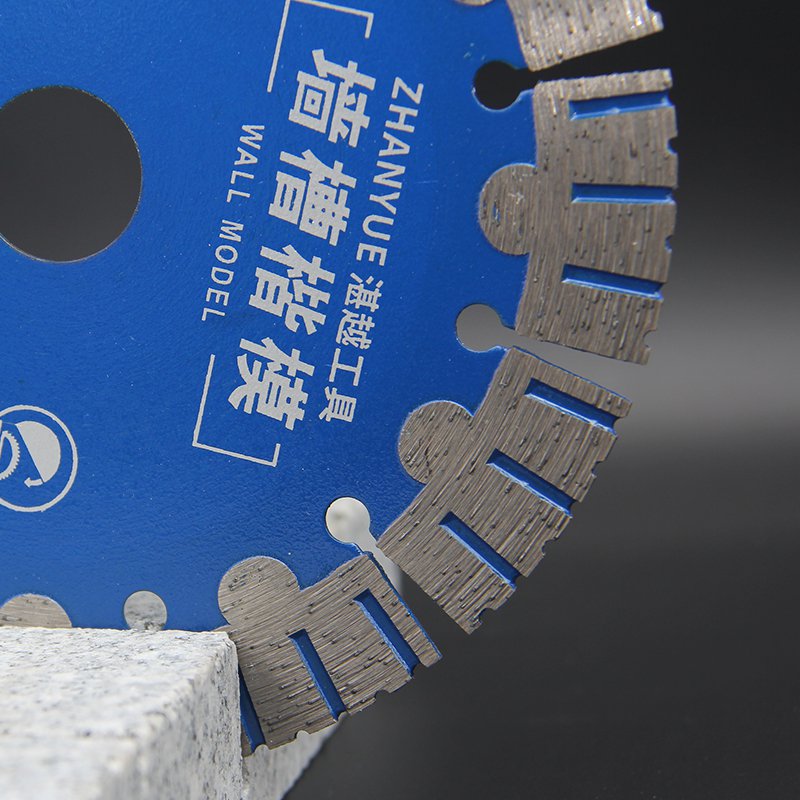

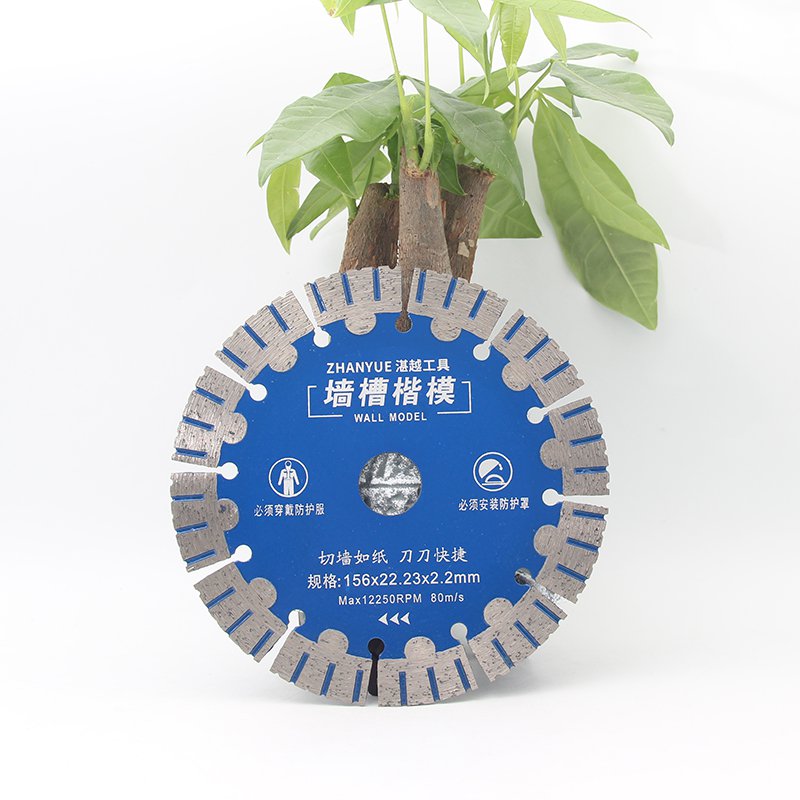

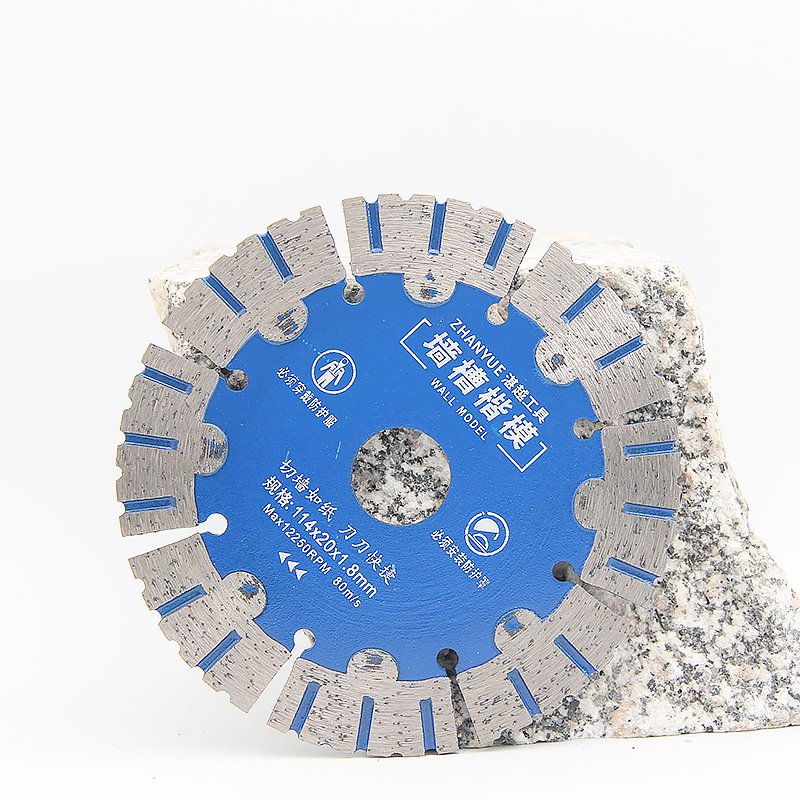

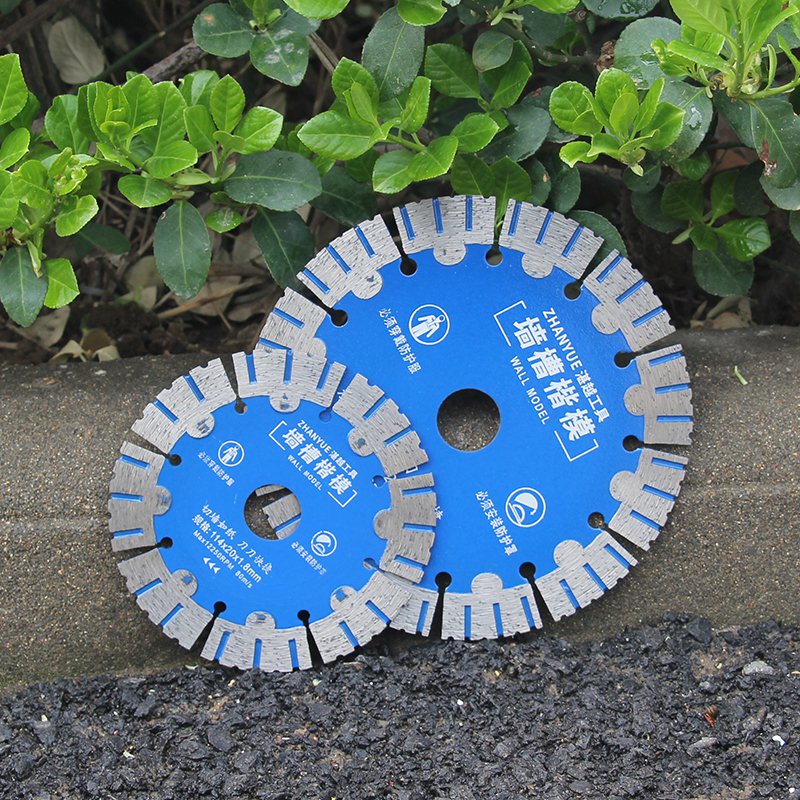

114–230mm Wall Chasing Diamond Blade Series

This wall-chasing series covers a listed diameter range of 114–230mm. Bore and thickness are also shown as ranges. The available combinations must be confirmed individually: a range is not a promise that every diameter can be supplied with every bore.

Catalogue reference: #2549

Dimensions and listed application

Confirm one complete version before ordering

Please give the diameter you need first. We need to confirm the corresponding bore and thickness on the quotation; this page does not offer every possible combination.

Ask about this model

Send reference #2549, your material, machine and required quantity. For a repeat order, include the approved sample or drawing reference. Marking and packaging changes can be discussed separately.

Open the enquiry worksheet · Record a sample trial · Contact Zhanyue Tools

Before use

Check the supplied blade marking and the machine instructions for fit, speed, cooling and permitted operation. The catalogue dimensions are not operating instructions. See our selection guide for the information to check before ordering.
