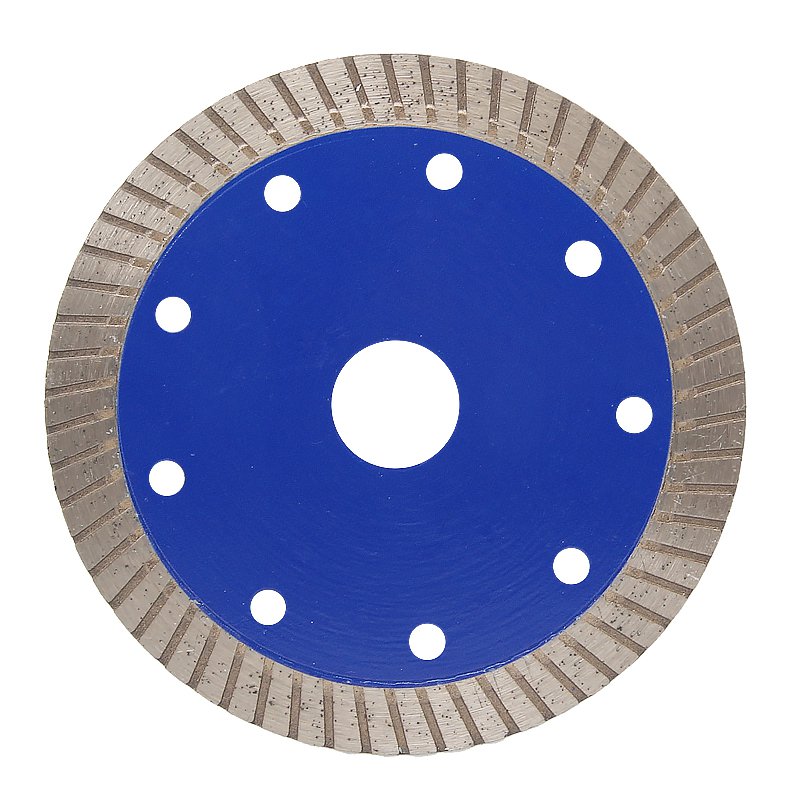

110mm Blue 58-Tooth Diamond Cutting Blade
The 58-tooth description distinguishes this blue 110mm catalogue entry. It lists a 1.6mm thickness and 20mm bore. Include the reference and tile or stone details in the enquiry so the design name is not mistaken for a universal finish recommendation.

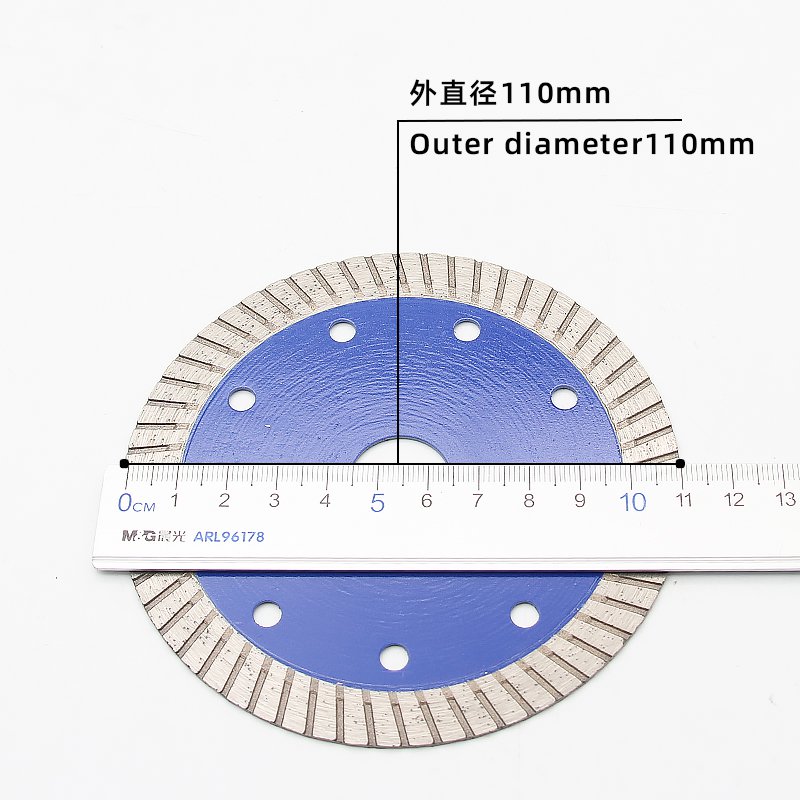

- Diameter: 110mm

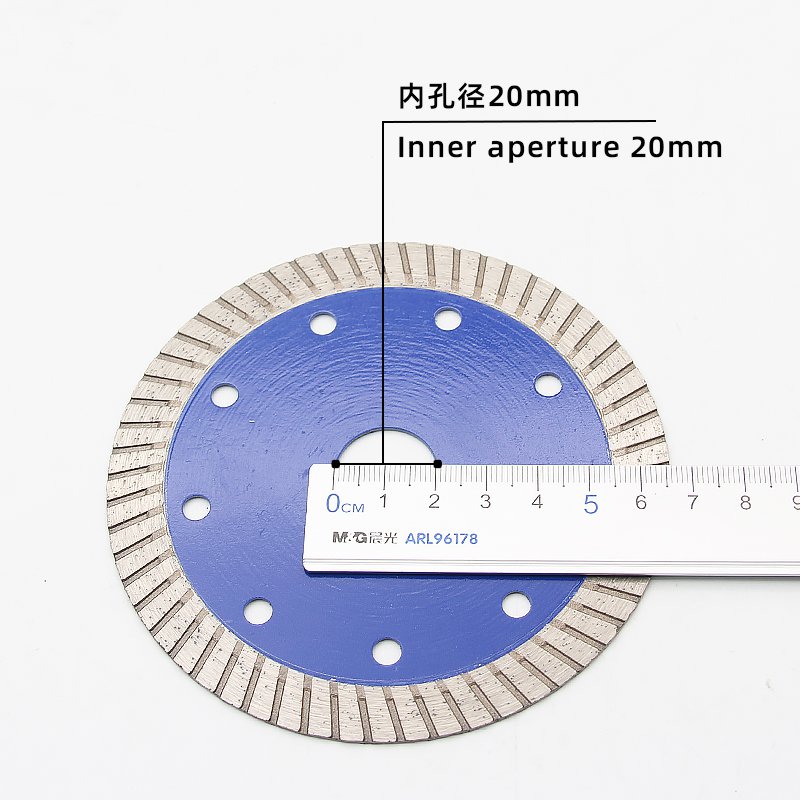

- Bore: 20mm

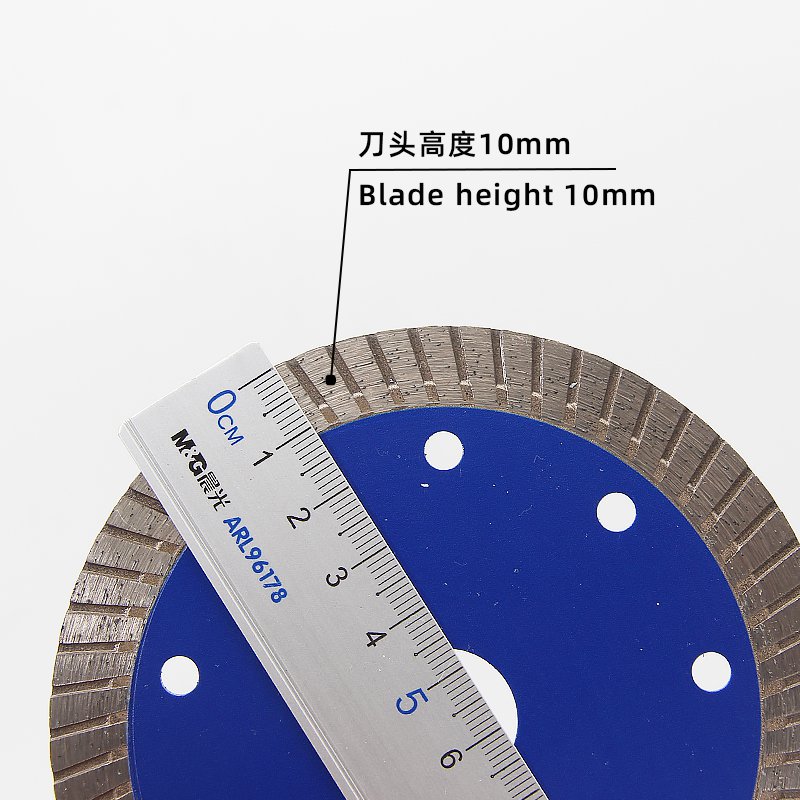

- Segment height: 10mm
- Thickness: 1.6mm
- Place of origin: China, Shandong, Linyi
- Applications: ceramics, tiles, rock slabs, microcrystalline stone cutting.
Product Details
Content updated:
The 58-tooth description distinguishes this blue 110mm catalogue entry. It lists a 1.6mm thickness and 20mm bore. Include the reference and tile or stone details in the enquiry so the design name is not mistaken for a universal finish recommendation.
Catalogue reference: #2637
Dimensions and listed application
| Specification | Catalogue information |
|---|---|
| Diameter | 110mm |
| Bore | 20mm |
| Segment height | 10mm |
| Thickness | 1.6mm |
| Place of origin | China, Shandong, Linyi |
| Applications | ceramics, tiles, rock slabs, microcrystalline stone cutting. |
Compare nearby catalogue sizes
| Reference | Diameter | Bore | Segment | Thickness |
|---|---|---|---|---|
| #2637 | 110mm | 20mm | 10mm | 1.6mm |
| #3147 | 110mm | 20mm | 10mm | 1.2mm |
| #2645 | 110mm | 20mm | 10mm | 1.8mm |
Other references in this comparison: 110mm Reinforced Flange Ceramic Tile Blade · 110mm Continuous Rim Wet & Dry Blade – Design 2645. Matching dimensions do not establish the same bond, rim or permitted use.
Ask about this model
Send reference #2637, your material, machine and required quantity. For a repeat order, include the approved sample or drawing reference. Marking and packaging changes can be discussed separately.
Open the enquiry worksheet · Record a sample trial · Contact Zhanyue Tools
Before use
Check the supplied blade marking and the machine instructions for fit, speed, cooling and permitted operation. The catalogue dimensions are not operating instructions. See our selection guide for the information to check before ordering.
