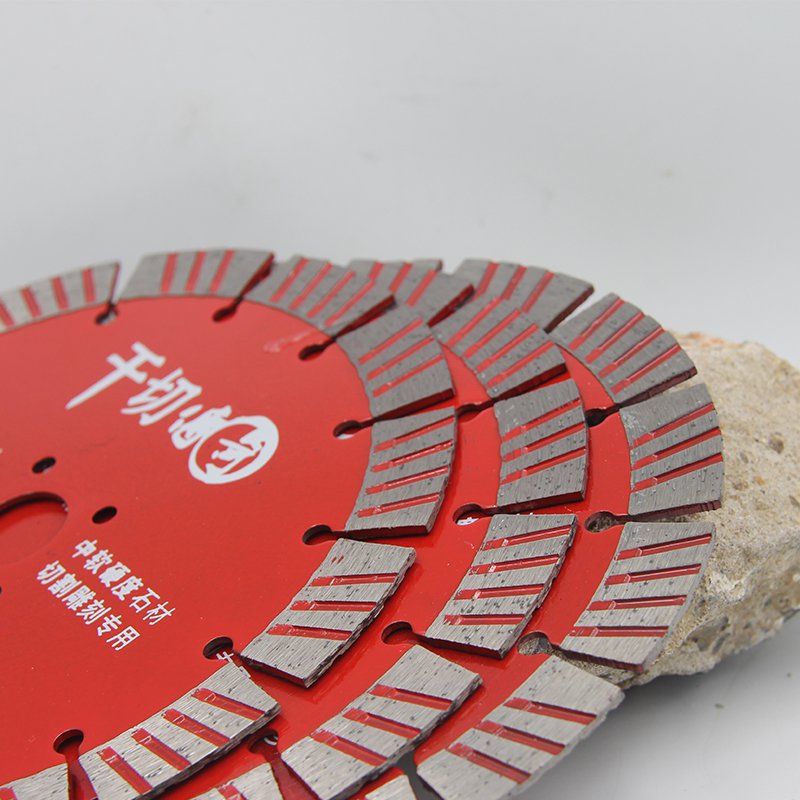

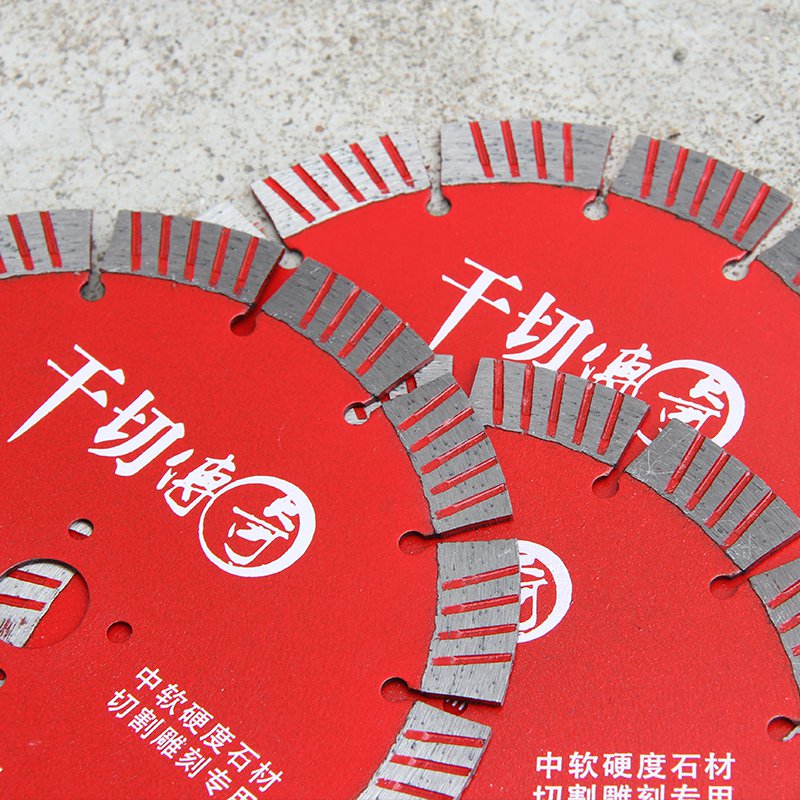

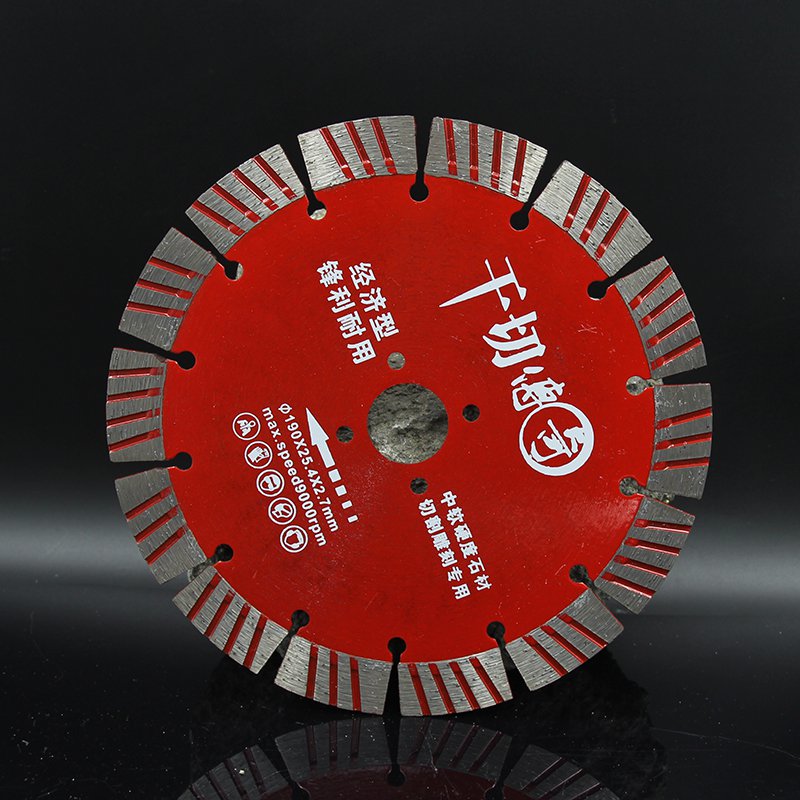

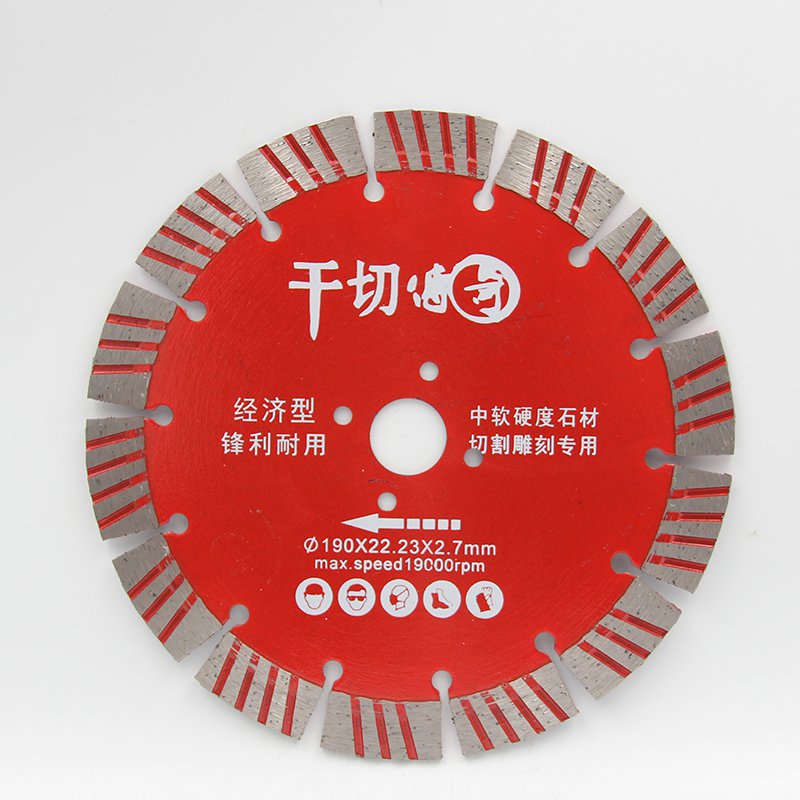

190–230mm Dry Cutting Wall Chasing Diamond Blades
This series lists 190mm, 210mm and 230mm diameters. It also lists more than one bore and thickness, but the current record does not map each combination. Specify the diameter you need and request the corresponding confirmed drawing before treating a combination as available.
- Diameter: 190mm-210mm-230mm
- Bore: 22.23/25.4mm
- Segment height: 17mm
- Thickness: 2.6/2.7/2.8mm
- Place of origin: China, Shandong, Linyi
- Applications: Wall channel cutting, red brick concrete stone type
Product Details
Content updated:
This series lists 190mm, 210mm and 230mm diameters. It also lists more than one bore and thickness, but the current record does not map each combination. Specify the diameter you need and request the corresponding confirmed drawing before treating a combination as available.
Catalogue reference: #2628
Dimensions and listed application
| Specification | Catalogue information |
|---|---|
| Diameter | 190mm-210mm-230mm |
| Bore | 22.23/25.4mm |
| Segment height | 17mm |
| Thickness | 2.6/2.7/2.8mm |
| Place of origin | China, Shandong, Linyi |
| Applications | Wall channel cutting, red brick concrete stone type |
Confirm one complete version before ordering
| Parameter | Listed information | Still to confirm |
|---|---|---|
| Diameter | 190 / 210 / 230mm | Requested version |
| Bore | 22.23 / 25.4mm | Bore for the chosen diameter |
| Thickness | 2.6 / 2.7 / 2.8mm | Thickness for the chosen diameter |
Please give the diameter you need first. We need to confirm the corresponding bore and thickness on the quotation; this page does not offer every possible combination.
Ask about this model
Send reference #2628, your material, machine and required quantity. For a repeat order, include the approved sample or drawing reference. Marking and packaging changes can be discussed separately.
Open the enquiry worksheet · Record a sample trial · Contact Zhanyue Tools
Before use
Check the supplied blade marking and the machine instructions for fit, speed, cooling and permitted operation. The catalogue dimensions are not operating instructions. See our selection guide for the information to check before ordering.
